Presentation
| Product range | MC7060-A1 |
| Product type | Microscope |
Sale package
| Pack | Blister |
| Content | Microscope Accessories / Microscope |
| Product status | New |

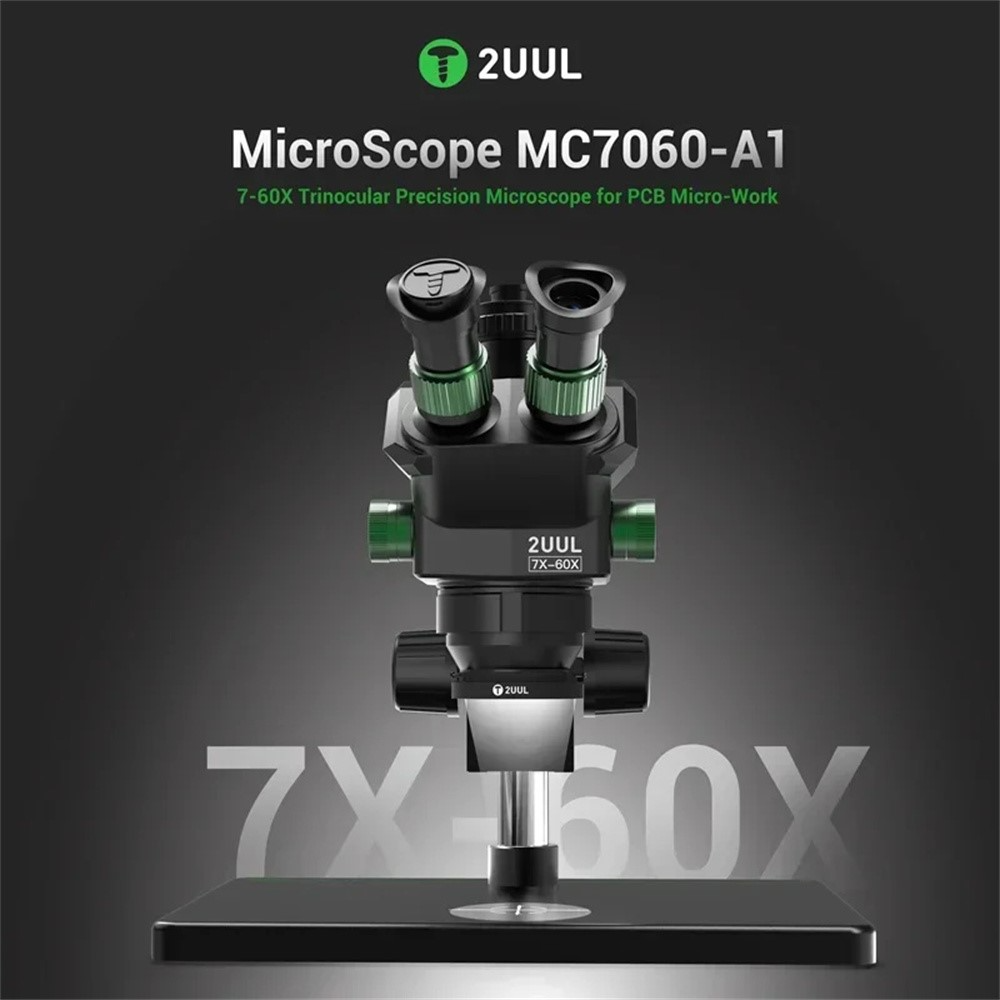

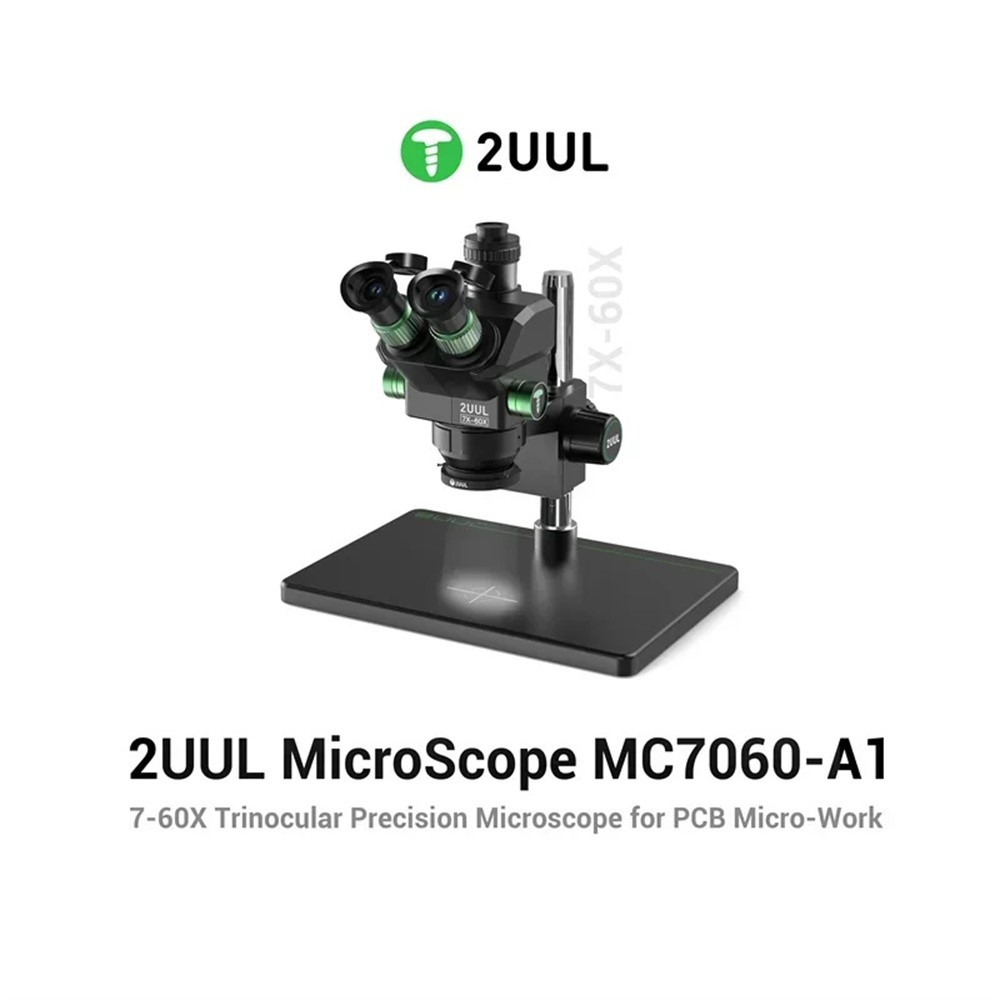

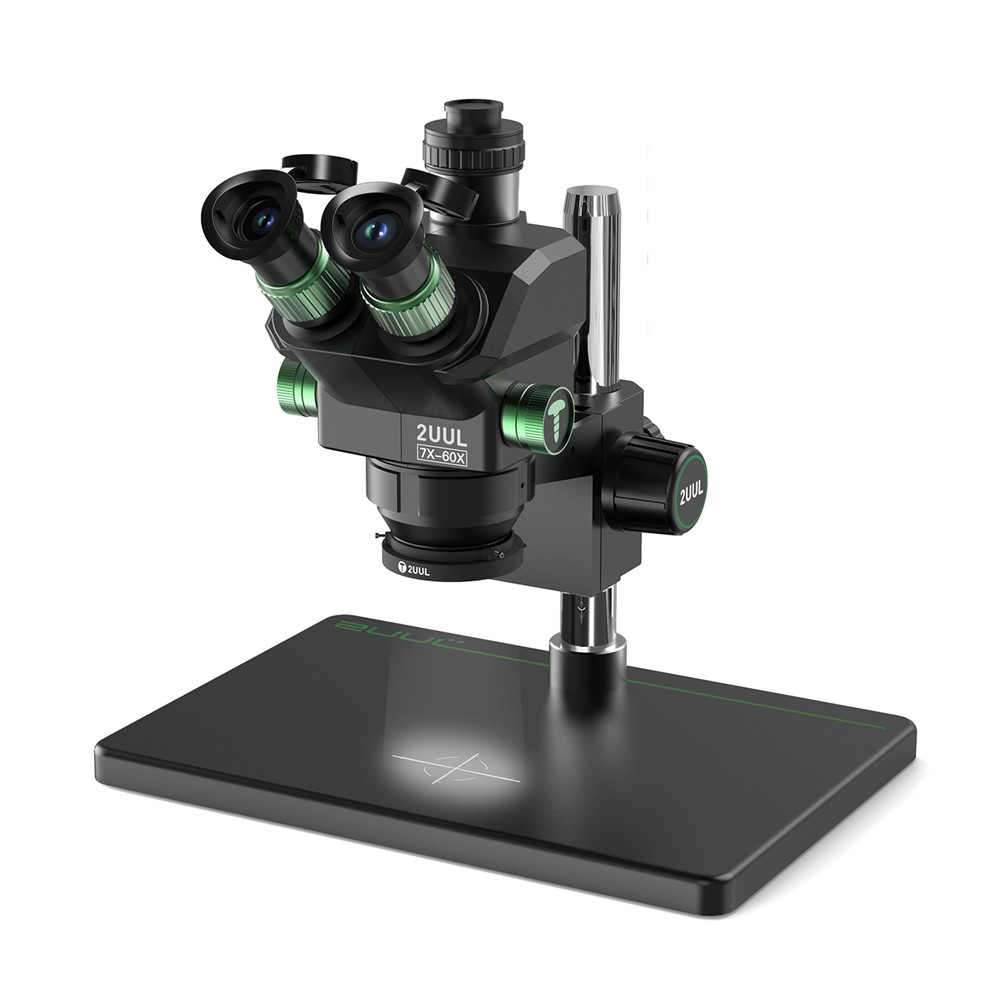

2UUL MC7060-A1 Microscope - Black
The 2UUL MC7060-A1 microscope is a professional device designed for PCB board inspection, microsoldering, and precision electronic repairs.
Thanks to the 7X - 60X magnification range, it allows easy switching from a wide view of the work area to detailed inspection of components
and fine solder joints, providing high clarity in delicate operations. The trinocular system allows connection of a camera or a CCD module through the dedicated port,
making it ideal for live display, video recording, or documenting service work. This feature makes it suitable for both precise interventions
and technical presentations or visually assisted work. The microscope is equipped with adjustable LED lighting, which helps achieve uniform

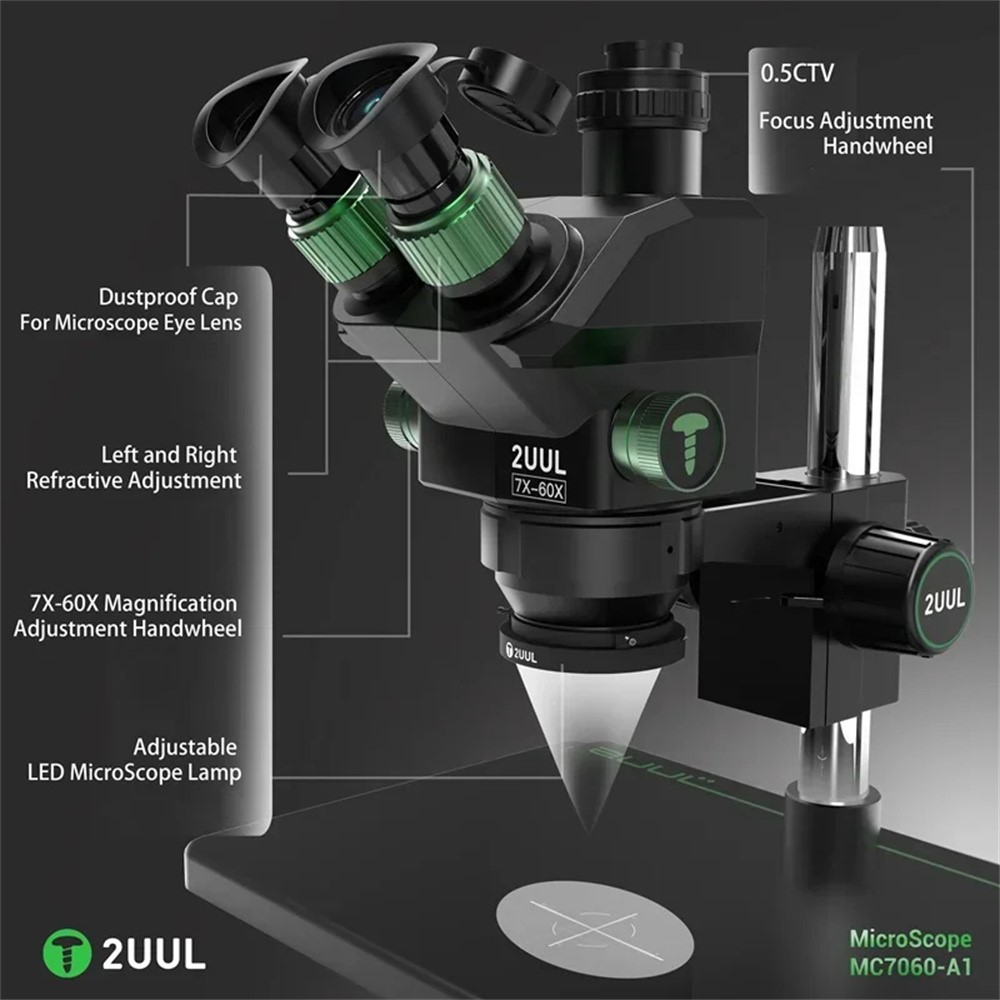

and clear illumination in the work area, reducing shadows and improving visibility during complex operations. The focus and magnification adjustments are easily accessible
and allow comfortable use, with good control and increased work efficiency. The package also includes useful accessories for protection and comfort,
such as a dust cover and rubber eyepiece protectors, helping to keep the equipment in good condition for long-term use.
Features:
- Product dimensions: 38 x 26 x 27 cm
- Net weight: 4.6 kg

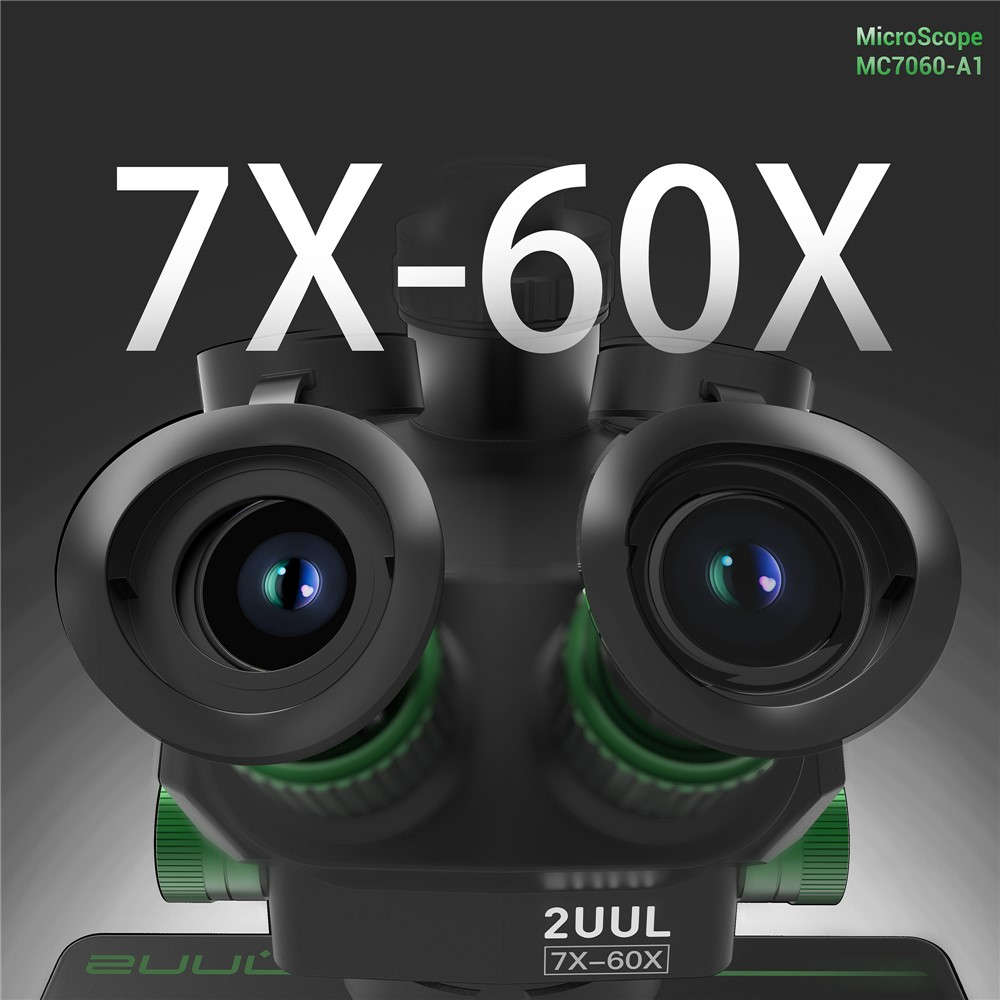

- Eyepieces: WF10X / 23 mm, wide field, wide angle, high point
- Magnification: 7X - 60X
- Field of view: 31.4 mm at 7X - 3.7 mm at 60X
- Interface: trinocular Phototube and CTV port
- Compatibility: camera and CCD connection
- Lighting: adjustable LED
